If you source products from China, you’ve probably heard an inspector mention “AQL 2.5” or “Level II.” But what exactly is ANSI/ASQ Z1.4, and why does it matter so much? This article breaks down the world’s most widely used acceptance sampling standard in plain, practical language.

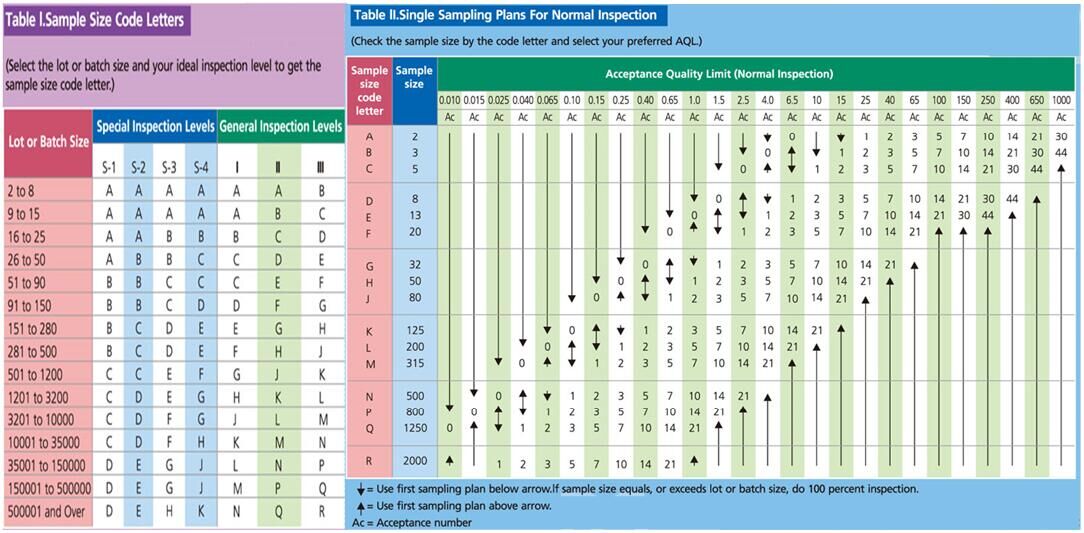

Figure: ANSI/ASQ Z1.4 AQL Sampling Inspection Standard Reference Table
1. What Is ANSI/ASQ Z1.4?
ANSI/ASQ Z1.4 (equivalent to ISO 2859-1) is the world’s most widely adopted acceptance sampling standard by attributes. It is an AQL-based (Acceptable Quality Level) sampling system used to randomly inspect raw materials, work-in-progress, and finished goods to determine whether an entire lot meets a predetermined quality threshold.
In simple terms: you don’t need to inspect every single unit. By drawing a statistically representative sample, you can infer the quality level of the entire lot with a known degree of confidence. The standard’s predecessor was MIL-STD-105E, the U.S. military sampling standard. When the Department of Defense discontinued MIL-STD-105E in 1995, ANSI/ASQ Z1.4 was officially recommended as its replacement — and the two are substantively identical in their core content.
2. Three Core Components
2.1 Inspection Level
The inspection level determines the sample size. For the same lot size, a higher inspection level means a larger sample is drawn.
| Category | Level | Relative Sample Size | Best For |
|---|---|---|---|
| General Inspection | Level I | ~50% of Level II | Consistent quality history, minimal defect impact |
| Level II | Baseline (100%) | Default for most routine inspections | |
| Level III | ~200% of Level II | High-risk products, critical consequences | |
| Special Inspection | S-1 ~ S-4 | Very small | Destructive tests, very large lots, non-functional defects |
In practice, General Inspection Level II is the workhorse — approximately 95% of all routine product inspections use this level.
2.2 Setting AQL Values
AQL represents the customer’s acceptable maximum average defect rate for a lot. Common AQL values range from 0.065 to 6.5. Different defect categories typically have different AQL values:
| Defect Class | Recommended AQL | Description |
|---|---|---|
| Critical | 0 | Safety hazards, regulatory violations — zero tolerance |
| Major | 1.5 or 2.5 | Affects product function or usability |
| Minor | 4.0 | Cosmetic or workmanship flaws, non-functional |
2.3 Dynamic Switching of Inspection Severity
One of Z1.4’s unique strengths is its built-in switching mechanism. Inspection severity is not static — it adjusts dynamically based on actual supplier quality performance:
| Severity | Trigger | Sample Size Change |
|---|---|---|
| Normal | Starting point, no failure history | Baseline |
| Tightened | 2-5 consecutive lot failures | Increases (~double) |
| Reduced | 10+ consecutive passes, stable quality | Decreases (~half) |
This mechanism creates both an economic and quality-based incentive for suppliers to maintain consistent process quality. Once switched to tightened inspection, the probability of lot rejection increases significantly — and no supplier wants to risk that.
Figure: ANSI/ASQ Z1.4 Sampling Inspection — The 5-Step Process
3. Practical Implementation: The Five-Step Process
Step 1 — Define the Lot & Lot Size
Identify the total quantity to be inspected. The lot must consist of products from the same production run and specification. Mixing different batches invalidates the statistical validity of the sampling results.
Step 2 — Select Inspection Level & AQL
Default: General Inspection Level II. Set AQL values per defect class based on product risk (see table above). Critical principle: Critical defect AQL must be 0 — no safety-related defect is ever “acceptable” through sampling.
Step 3 — Find Sample Size Code Letter
Use the lot size and inspection level to find the corresponding code letter in the standard table. Example: Lot size 500 + Level II → Code Letter K.
Step 4 — Determine Sample Size & Ac/Re
Using the code letter and AQL value, look up: Sample Size (n), Acceptance Number (Ac), and Rejection Number (Re, usually Re = Ac+1) in the Z1.4 tables.
Step 5 — Random Sampling, Inspection, Decision
Samples must be drawn strictly at random — no cherry-picking of “good” units by the factory. Count defects by class and compare against Ac/Re to make the accept/reject decision. Sampling inspection is not a casual glance at a few units — it is a rigorous, statistically grounded process.
Figure: Product Inspection Across Different Categories — Textiles, Electronics, Toys & Hardware
4. Product Category Application Differences
Z1.4 / ISO 2859-1 applies to virtually all manufactured goods. However, the choice of inspection level and AQL varies meaningfully across product categories — a one-size-fits-all approach will leave your QC strategy either too lax or unnecessarily expensive.
4.1 Textiles & Apparel
| Check | Level | Suggested AQL |
|---|---|---|
| Visual & Workmanship | Level II | Major 2.5 / Minor 4.0 |
| Measurement | Level I or II | 2.5 |
| Color / Print | Level II | 4.0 |
| Packaging & Labeling | Level I | 4.0 |
Practical note: Textile inspections typically cover four dimensions — quality (appearance & workmanship), quantity, packaging, and labeling. Garment measurements are usually taken from a subset of the sample, not the entire sample.
4.2 Electronics & Electrical Appliances
| Check | Level | Suggested AQL |
|---|---|---|
| Function & Performance | Level II or III | Critical 0 / Major 1.0 |
| Safety Features | Level III | Critical 0 / Major 0.65 |
| Appearance & Assembly | Level II | Minor 2.5 |
| Packaging & Labeling | Level I | 4.0 |
Practical note: Electronics inspections are typically conducted in three stages — pre-production, during-production (DUPRO), and pre-shipment (PSI). Electrical safety tests (hipot, grounding, insulation) require 100% testing and are not subject to AQL sampling — a point often overlooked by first-time importers.
4.3 Toys & Children’s Products
| Check | Level | Suggested AQL |
|---|---|---|
| Safety (small parts, sharp edges) | Level III | Critical 0 |
| Physical & Mechanical | Level II | Major 1.5 |
| Chemical / Heavy Metals | Special S-2 | Compliance-based |
| Appearance & Packaging | Level II | Minor 4.0 |
Practical note: Toy safety testing must follow EN71, ASTM F963, and other international standards. AQL sampling applies only to visual and general performance checks. Safety-related chemical and physical testing requires dedicated lab analysis — you cannot rely solely on AQL sampling to “accept” safety compliance.
4.4 Hardware & Mechanical Parts
| Check | Level | Suggested AQL |
|---|---|---|
| Critical Dimensions & Tolerances | Level II or III | Major 1.0 |
| Material & Hardness | Level II | 1.5 |
| Surface Finish | Level II | Minor 4.0 |
| Packaging & Protection | Level I | 4.0 |
Practical note: For hardware parts, critical dimensions that affect assembly interchangeability should use Level II or III. Critical defects (cracks, structural flaws) must have AQL = 0. For precision-machined parts, some dimensions may be checked at special levels like S-2 with very small sample sizes.
4.5 Consumer Goods & General Merchandise
| Check | Level | Suggested AQL |
|---|---|---|
| Function & Usability | Level II | Major 2.5 |
| Appearance & Workmanship | Level II | Minor 4.0 |
| Packaging & Labeling | Level I | 4.0 |
General merchandise is the broadest application area for Z1.4, covering home goods, kitchenware, stationery, garden tools, pet supplies, and more. These products commonly use Level II + AQL 2.5/4.0 — which is precisely where the ubiquitous “AQL 2.5” shorthand in the industry comes from.
5. Common Misconceptions & Pitfalls
| Misconception | Reality |
|---|---|
| “Passing AQL = zero defects” | AQL sampling always carries residual risk. Passing does not mean every unit is defect-free — it means the lot’s defect rate is statistically within the agreed AQL threshold. |
| “Smaller AQL is always better” | Overly strict AQL inflates sample sizes, drives up inspection costs, and suppliers may raise unit prices to absorb QC expenses. Choose AQL based on product risk — not blind pursuit of small numbers. |
| “Just grab a few and check” | Samples must be strictly random. If the sample is not representative of the lot, the inspection result has zero statistical value — you spent time and money for an unreliable judgment. |
| “One AQL for all defects” | Critical, major, and minor defects must each have their own AQL. Using AQL 4.0 to “accept” safety defects is a recipe for disaster. |
| “AQL replaces lab testing” | AQL is a statistical sampling tool. It cannot replace chemical analysis, flammability testing, drop testing, or other dedicated lab work. They address different dimensions of quality. |
6. How to Use Z1.4 to Better Protect Your Orders
- Define AQL requirements in your purchase contract. When signing quality agreements, explicitly state AQL values for each defect class — this is infinitely more effective than a verbal “make it good quality.”
- Match inspection level to product risk. Use Level III for children’s products, Level II for general goods. Don’t choose a lower level just to save money — a single return shipment loss dwarfs any inspection fee savings.
- Build a supplier quality history. Use Z1.4’s Normal/Tightened/Reduced switching rules based on inspection history. This is the most powerful leverage the standard gives you.
- Never substitute AQL for mandatory lab testing. Safety, chemical, and reliability testing still require batch-specific lab work — AQL addresses “how many defects are acceptable,” while lab testing addresses “is the product compliant.”
- Keep complete inspection records. Every inspection report is a data point for supplier evaluation and traceability. When issues arise, documented evidence gives you a strong negotiating position.
Conclusion
ANSI/ASQ Z1.4 (ISO 2859-1) is the most mature and widely applied acceptance sampling standard in the world. Through scientifically designed sample sizes, flexible severity switching, and a clear AQL framework, it helps global buyers control product quality risks at a reasonable cost.
For importers sourcing from China, understanding the core logic of this standard — defining AQL in contracts, making accurate acceptance decisions during inspection, and maintaining leverage in supplier negotiations — is not optional; it’s fundamental.
